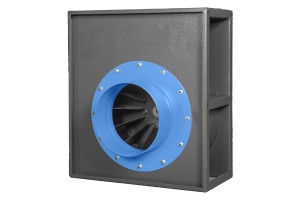

KSDF fans can be connected to kitchen hoods to exhaust the air from cookers, grilles, fryers etc. It will exhaust the greasy air and keeps the kitchen area clean and odorless. Motor is located out of the airstream and is not effected by matters in the air.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| MOTOR BRAND | GAMAK-VOLT-WAT |
| MOTOR ENCLOSURE TYPE | TEFC |
| BODY MATERIAL | ST37 SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ST37 SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KSDF 1 | 230/380 | 50 | 0,37 | 1400 | 1500 | 61 | 27,5 |
| KSDF 2 | 230/380 | 50 | 0,75 | 1400 | 2500 | 64 | 34 |
| KSDF 3 | 230/380 | 50 | 1,1 | 1400 | 3500 | 65 | 41 |
| KSDF 4 | 230/380 | 50 | 1,5 | 1400 | 4500 | 67 | 51 |
| KSDF 5 | 230/380 | 50 | 2,2 | 1400 | 6000 | 69 | 63,4 |
| KSDF 6 | 230/380 | 50 | 3 | 1440 | 6500 | 70 | 67 |
| KSDF 7 | 380 | 50 | 4 | 1400 | 7000 | 74 | 70 |
| KSDF 8 | 380 | 50 | 5,5 | 1400 | 9000 | 77 | 98 |
| KSDF 9 | 380 | 50 | 7,5 | 1400 | 12000 | 79 | 121 |
| KSDF 10 | 380 | 50 | 11 | 1400 | 15000 | 84 | 150 |

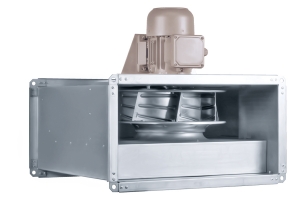

KRDF-D is used for supplying rectangular ventilation ducts with fresh air or for exhaust evacuation in the range of minimum 1.600m3 / h and maximum 9.800m3 / h air flow. Inspection hatch allows cleaning fan and maintenance. Motor is located out of the air flow and is not effected by matters in the air. Factory, Hospital, Office, Laboratory, Shopping Mall (shopping malls), Cafe, Commercial kitchens, Parking lots etc. It is suitable for use in all buildings with rectangular duct system.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WAT |
| MOTOR ENCLOSURE TYPE | TEFC |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | NONE |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRDF-D 315 | 230/380 | 50 | 0,25 | 1400 | 1600 | 70 | 35 |
| KRDF-D 355 | 230/380 | 50 | 0,37 | 1420 | 2300 | 73 | 36 |
| KRDF-D 400 | 230/380 | 50 | 0,55 | 1470 | 3300 | 75 | 49 |
| KRDF-D 450 | 230/380 | 50 | 0,75 | 1450 | 5000 | 78 | 52 |
| KRDF-D 500 | 230/380 | 50 | 1,1 | 1400 | 7000 | 80 | 74 |
| KRDF-D 560 | 230/380 | 50 | 1,5 | 1440 | 9800 | 88 | 91 |

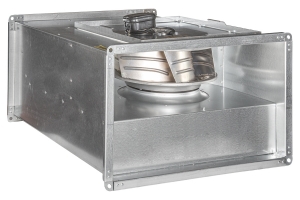

KRDF is used for supply or extract fresh air from rectangular ventilation ducts between min. 500m3/h max. 9.800m3/h air flow capacity. Factory, hospital, office, laboratory, super markets, shopping malls, cafes, restaurants, etc. It is suitable for use in all buildings where has rectangular duct system.
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | F CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | NONE |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ALIMINIUM - GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRDF 30 15 | 230 | 50 | 90 | 2630 | 500 | 65 | 6,0 |
| KRDF 40 20B | 230 | 50 | 180 | 2675 | 1250 | 73 | 6,2 |
| KRDF 50 25 | 230 | 50 | 200 | 2635 | 1700 | 75 | 7,2 |
| KRDF 60 30 | 230 | 50 | 140 | 1440 | 1950 | 66 | 7,2 |
| KRDF 60 35B | 230 | 50 | 360 | 1420 | 3400 | 72 | 10,4 |
| KRDF 70 40B | 230 | 50 | 690 | 1435 | 4900 | 78 | 11,4 |
| KRDF 80 50 | 230 | 50 | 1080 | 1350 | 7800 | 77 | 14,6 |
| KRDF 100 50 | 380 | 50 | 1550 | 1350 | 9800 | 77 | 90 |

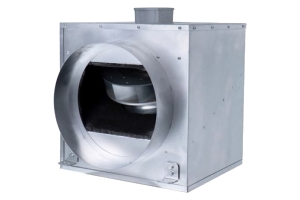

KCAB fans can be used between 320m3/h -2.000m3/h air volume requirements. Easy to install and low noise level with 20mm sound absorbing construction and low power usage makes it a good option for commercial use
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | F CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL E. POWDER COATING |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KCAB 100 | 230 | 50 | 68 | 2400 | 400 | 40 | 6,0 |
| KCAB 125 | 230 | 50 | 76 | 2350 | 500 | 40 | 6,2 |
| KCAB 150 | 230 | 50 | 110 | 2200 | 770 | 43 | 7,2 |
| KCAB 160 | 230 | 50 | 110 | 2200 | 780 | 44 | 7,2 |
| KCAB 200 | 230 | 50 | 155 | 2600 | 1100 | 45 | 10,4 |
| KCAB 250 | 230 | 50 | 150 | 2600 | 1230 | 47 | 11,4 |
| KCAB 315 | 230 | 50 | 187 | 2500 | 2000 | 49 | 14,6 |

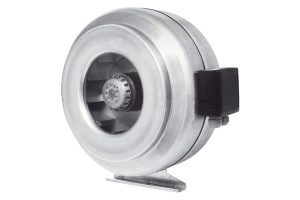

KVX is used for supplying 100 mm to 315 mm circular ventilation ducts with fresh air or evacuation of air in the range of minimum 400 m3/h and maximum 1.900 m3/h air flow capacity. It is an ideal choice with its easy installation to the duct, silent operation and low energy consumption. Factory, hospital, office, laboratory, shopping mall, cafe, restaurants, parking lot, etc. It is suitable for use in all structures with a round duct system.
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL E. POWDER COATING |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KVX 100 | 230 | 50 | 68 | 2400 | 400 | 42 | 3,0 |
| KVX 125 | 230 | 50 | 76 | 2350 | 500 | 43 | 3,1 |
| KVX 150 | 230 | 50 | 110 | 2200 | 650 | 47 | 3,6 |
| KVX 160 | 230 | 50 | 110 | 2200 | 650 | 47 | 3,6 |
| KVX 200 | 230 | 50 | 155 | 2600 | 1000 | 52 | 5,2 |
| KVX 250 | 230 | 50 | 150 | 2600 | 1200 | 57 | 5,7 |
| KVX 315 | 230 | 50 | 187 | 2500 | 1900 | 57 | 7,3 |

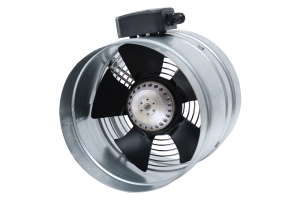

KBA circular duct type axial fan is used to discharge the polluted air of the environment or to supply fresh air industrial and living areas with round
air ducts with a diameter of 200mm to 300mm in the range of 650 - 2.200 m3 / h air flow capacity.
It can be preferred in commercial and residential ventilation needs with its easy installation to the duct, low noise level and power consumption
to optimum ventilation needs.Factory, hospital, office, laboratory, shopping mall , cafe, restaurants, etc. It is suitable for use in all structures with a
round duct system.
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | GALVANIZED |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80 ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KBA 200 | 230 | 50 | 70 | 2670 | 650 | 50 | 2,7 |
| KBA 250 | 230 | 50 | 70 | 2215 | 1480 | 55 | 3,6 |
| KBA 300 | 230 | 50 | 125 | 1750 | 2200 | 57 | 4,6 |
