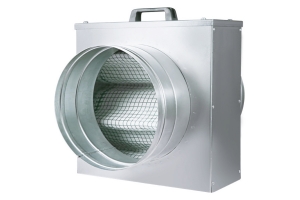

| SIZE (mm) |
| 100 |
| 125 |
| 150 |
| 200 |
| 250 |
| 315 |
| DIAMETER (mm) | FLOW RATE (m3/h) | LENGTH (mm) |
| 100 | 250 | 170 |
| 125 | 350 | 170 |
| 150 | 450 | 170 |
| 200 | 800 | 170 |
| 250 | 1200 | 170 |
| 315 | 1800 | 170 |
| 355 | 2200 | 355 |
| 400 | 2900 | 400 |

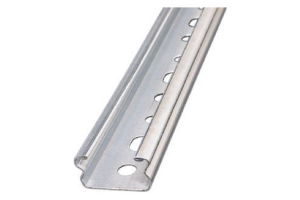

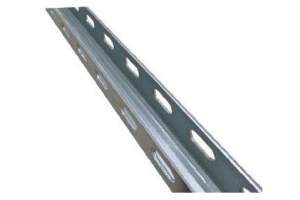

Produced from galvanized sheet metal C profiles can be used to hang ducts. They are sold as four meter profiles.
| WIDTH (mm) | THICKNESS (mm) |
| C 35x21x0,9 | 0,9 |

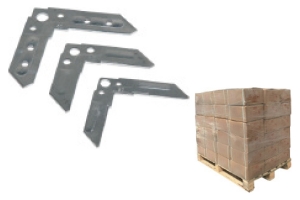

Produced from galvanized sheet metal or AISI 304 corners can be used to connect ducts together. Sold as boxes they can be purchased as 72 boxes pallets.
| WIDTH (mm) | THICKNESS (mm) |
| U 30x30x30 | 2,0 |
| U 30x30x30 | 3,0 |
| U 40x40x40 | 3,0 |
| U 40x40x40 | 4,0 |
| U 50x50x50 | 4,0 |
| U 30x40x30 | 2,0 |
| U 30x40x30 | 3,0 |

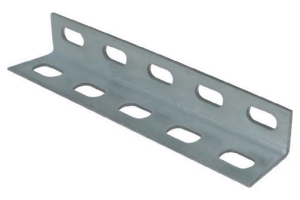

Produced from galvanized sheet metal L profiles can be used to hang ducts. They are sold as two meter profiles.
| WIDTH (mm) | THICKNESS (mm) |
| L 30x30 | 2,0 |
| L 30x30 | 3,0 |
| L 40x40 | 3,0 |
| L 40x40 | 4,0 |
| L 50x50 | 4,0 |
Produced from galvanized sheet metal or AISI 304 corners can be used to connect ducts together. Sold as boxes they can be purchased as 72 boxes pallets.
| THICKNESS (mm) | PCS / BOX |
| 2,0 | 500 |

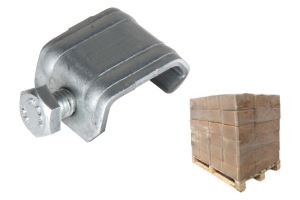

Produced from galvanized sheet metal or AISI 304 corners can be used to connect ducts together. Sold as boxes they can be purchased as 72 boxes pallets.
| WIDTH (mm) | PCS / BOX |
| 20 | 500 |
| 25 | 400 |
| 25 | 400 |
| 30 | 250 |
| AISI 304 25 | 400 |

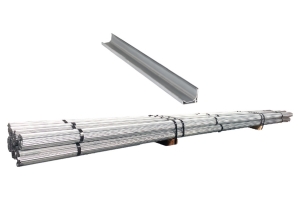

Produced from galvanized sheet metal or AISI 304 flanges can be used to connect ducts together. her. Sold in four meters. they can be purchased as 100 meters rolls or 1000 meters pallets.
| WIDTH (mm) | THICKNESS (mm) |
| 20 | 0,6 |
| 25 | 0,6 |
| 30 | 0,7 |
| AISI 304 25 | 0,6 |
FLANGE THICKNESSES MAY VARY ±0,05 mm

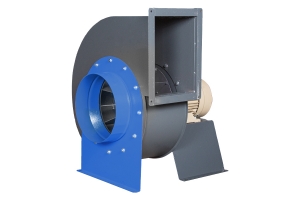

Pressure: 500 - 2.100 Pa. Airflow: 4.000 - 23.000 m3/h. Backward curved impeller. Direct coupling or belt driven. Minimum engine power, max. capacity. Used areas: Aspiration of clean or slightly dusty or clean air. Aspiration of exhaust fumes.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (KW) | REV (RPM) | FLOW RATE (m3/h) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KUGR 300 | 230/380 | 50 | 0,75 | 2800 | 4000 | 91 |
| KUGR 320 | 230/380 | 50 | 1,5 | 2800 | 6000 | 104 |
| KUGR 350A | 230/380 | 50 | 2,2 | 2800 | 6500 | 145 |
| KUGR 350B | 230/380 | 50 | 3 | 2800 | 9000 | 158 |
| KUGR 400A | 380 | 50 | 4 | 2800 | 10000 | 175 |
| KUGR 400B | 380 | 50 | 5,5 | 2800 | 13000 | 225 |
| KUGR 450A | 380 | 50 | 7,5 | 2800 | 15000 | 240 |
| KUGR 450B | 380 | 50 | 11 | 2800 | 18000 | 255 |
| KUGR 500A | 380 | 50 | 15 | 2800 | 21000 | 325 |
| KUGR 500B | 380 | 50 | 18,5 | 2800 | 23000 | 375 |
Pressure: 400 - 1400 pa. Airflow: 3.500 - 50.000 m3/h. Backward curved impeller. Direct coupling or belt driven. Minimum engine power, max. capacity. Used areas: Aspiration of clean or slightly dusty or clean air. Aspiration of exhaust fumes.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (KW) | REV (RPM) | FLOW RATE (m3/h) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KUGS 320 | 230/380 | 50 | 0.55 | 1450 | 3500 | 78 |
| KUGS 350A | 230/380 | 50 | 0.55 | 1450 | 3800 | 78 |
| KUGS 350B | 230/380 | 50 | 0.75 | 1450 | 5000 | 78 |
| KUGS 400A | 230/380 | 50 | 0.75 | 1450 | 6000 | 91 |
| KUGS 400B | 230/380 | 50 | 1,1 | 1450 | 7000 | 98 |
| KUGS 450A | 230/380 | 50 | 1,1 | 1450 | 8000 | 98 |
| KUGS 450B | 230/380 | 50 | 1,5 | 1450 | 10000 | 104 |
| KUGS 500A | 230/380 | 50 | 2,2 | 1450 | 10500 | 145 |
| KUGS 500B | 230/380 | 50 | 2,2 | 1450 | 12000 | 145 |
| KUGS 500C | 230/380 | 50 | 3 | 1450 | 13000 | 158 |
| KUGS 550A | 380 | 50 | 4 | 1450 | 15000 | 175 |
| KUGS 550B | 380 | 50 | 4 | 1450 | 16000 | 175 |
| KUGS 630A | 380 | 50 | 5,5 | 1450 | 18000 | 225 |
| KUGS 630B | 380 | 50 | 7,5 | 1450 | 20000 | 240 |
| KRFH 630C | 380 | 50 | 7,5 | 1450 | 22000 | 240 |
| KUGS 700A | 380 | 50 | 11 | 1450 | 26000 | 255 |
| KUGS 700B | 380 | 50 | 15 | 1450 | 30000 | 325 |
| KUGS 800A | 380 | 50 | 18,5 | 1450 | 40000 | 375 |
| KUGS 800B | 380 | 50 | 22 | 1450 | 50000 | 410 |
