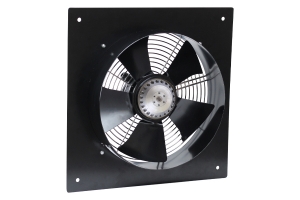

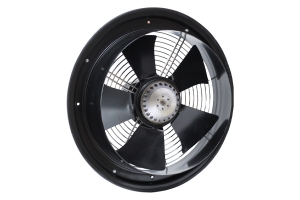

KWAS is wall-window type axial fan which is used for cooling of machines, cooling of electrical panels, cooling of welding machines and in all residential places between min. 650 m3/h max. 2.200 m3/h air flow capacity to remove the polluted air of the environment or to supply fresh air.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KWAS 200 | 230 | 50 | 70 | 2670 | 650 | 60 | 2,9 |
| KWAS 250 | 230 | 50 | 70 | 2215 | 1480 | 65 | 3,9 |
| KWAS 300 | 230 | 50 | 125 | 1750 | 2200 | 68 | 4,9 |
KWAR is wall-window type axial fan which is used for cooling of machines, cooling of electrical panels, cooling of welding machines and in all residential places between min. 650m3/h max. 2.200 m3/h air flow capacity to remove the polluted air of the environment or to supply fresh air.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KWAR 200 | 230 | 50 | 70 | 2670 | 650 | 50 | 2,7 |
| KWAR 250 | 230 | 50 | 70 | 2215 | 1480 | 55 | 3,6 |
| KWAR 300 | 230 | 50 | 125 | 1750 | 2200 | 57 | 4,6 |

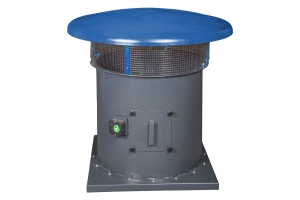

KSEF-C is used for pressurization, smoke exhaust, supply or extraction on roof top between min. 3.500 m3/h max. 100.000 m3/h air flow capacity. Factory, warehouse, hospital, shopping malls, cafes, restaurants etc. It is suitable for using on all buildings top for ventilation systems.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WATT |
| MOTOR ENCLOSURE TYPE | TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | ALUMINUM |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KSEF-C 400 | 230/380 | 50 | 0,37 | 1400 | 3500 | 69 | 38 |
| KSEF-C 450 | 230/380 | 50 | 0,55 | 1400 | 4400 | 69 | 42 |
| KSEF-C 500 | 230/380 | 50 | 0,55 | 1400 | 6000 | 72 | 44 |
| KSEF-C 560 | 230/380 | 50 | 0,75 | 1400 | 8200 | 75 | 48 |
| KSEF-C 630 | 230/380 | 50 | 1,10 | 1400 | 14000 | 80 | 60 |
| KSEF-C 710 | 230/380 | 50 | 1,50 | 1400 | 20000 | 83 | 73 |
| KSEF-C 800A | 230/380 | 50 | 2,20 | 1400 | 26000 | 89 | 85 |
| KSEF-C 800B | 230/380 | 50 | 3 | 1400 | 32000 | 90 | 91 |
| KSEF-C 900A | 380 | 50 | 4 | 1400 | 40000 | 94 | 95 |
| KSEF-C 900B | 380 | 50 | 5,5 | 1400 | 48000 | 94 | 96 |
| KSEF-C 900C | 380 | 50 | 11 | 1400 | 49000 | 97 | 108 |
| KSEF-C 1000A | 380 | 50 | 7,5 | 1400 | 56000 | 99 | 99 |
| KSEF-C 1000B | 380 | 50 | 15 | 1400 | 65000 | 100 | 108 |
| KSEF-C 1000C | 380 | 50 | 18,5 | 1400 | 73000 | 102 | 125 |
| KSEF-C 1120A | 380 | 50 | 22 | 1400 | 90000 | 104 | 128 |
| KSEF-C 1120B | 380 | 50 | 30 | 1400 | 100000 | 104 | 137 |
KARF is used for pressurization, smoke exhaust, supply or extraction on roof top between min. 3.500m3/h max. 56.000 m3/h air flow capacity. Factory, warehouse, hospital, shopping malls, cafes, restaurants etc. It is suitable for using on all buildings top for ventilation systems.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WATT |
| MOTOR ENCLOSURE TYPE | TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | PLASTIC |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KARF 400 | 230/380 | 50 | 0,37 | 1400 | 3500 | 69 | 27 |
| KARF 450 | 230/380 | 50 | 0,55 | 1400 | 4400 | 69 | 29 |
| KARF 500 | 230/380 | 50 | 0,55 | 1400 | 6000 | 72 | 44 |
| KARF 560 | 230/380 | 50 | 0,75 | 1400 | 8200 | 75 | 48 |
| KARF 630 | 230/380 | 50 | 1,10 | 1400 | 14000 | 80 | 60 |
| KARF 710 | 230/380 | 50 | 1,50 | 1400 | 20000 | 83 | 73 |
| KARF 800A | 230/380 | 50 | 2,20 | 1400 | 26000 | 89 | 85 |
| KARF 800B | 230/380 | 50 | 3 | 1400 | 32000 | 90 | 91 |
| KARF 900A | 380 | 50 | 4 | 1400 | 40000 | 94 | 95 |
| KARF 900B | 380 | 50 | 5,5 | 1400 | 48000 | 94 | 96 |
| KARF 1000 | 380 | 50 | 7,5 | 1400 | 56000 | 99 | 99 |

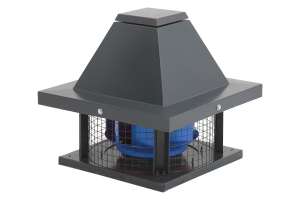

KRFH model is designed motor outside of air flow that allows as well smoke extraction up to 120°C degree horizontally between min. 1.100m3/h max. 9.800m3/h air flow capacity on all roof top applications where the shafts are required medium pressure loss. It is suitable for ventilation on all buildings like factory, commercial kitchens, hospital, shopping malls, cafes, restaurants etc.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WATT |
| MOTOR ENCLOSURE TYPE | TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ST37 SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRFH 310 | 380 | 50 | 0,25 | 1450 | 2500 | 44 | 44 |
| KRFH 355 | 380 | 50 | 0,37 | 1450 | 3500 | 45 | 54 |
| KRFH 400 | 380 | 50 | 0,75 | 1450 | 4500 | 48 | 59 |
| KRFH 450 | 380 | 50 | 1,1 | 1450 | 6500 | 55 | 67 |
| KRFH 500 | 380 | 50 | 1,5 | 1450 | 8500 | 60 | 73 |
| KRFH 560A | 380 | 50 | 2,2 | 1450 | 12000 | 65 | 80 |
| KRFH 560B | 380 | 50 | 4 | 1450 | 15000 | 80 | 85 |
| KRFH 630 | 380 | 50 | 5,5 | 1450 | 20000 | 85 | 132 |

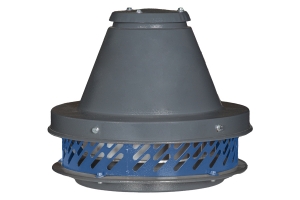

KRFH-D model is designed motor outside of air flow that allows as well smoke extraction up to 120°C degree horizontally between min. 1.100m3/h max. 9.800m3/h air flow capacity on all roof top applications where the shafts are required medium pressure loss. It is suitable for ventilation on all buildings like factory, commercial kitchens, hospital, shopping malls, cafes, restaurants etc.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WATT |
| MOTOR ENCLOSURE TYPE | TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ALUMINIUM AND GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRFH-D 280 | 230/380 | 50 | 0,18 | 1400 | 1100 | 73 | 28 |
| KRFH-D 315 | 230/380 | 50 | 0,25 | 1400 | 1600 | 73 | 32 |
| KRFH-D 355 | 230/380 | 50 | 0,37 | 1400 | 2300 | 75 | 34 |
| KRFH-D 400 | 230/380 | 50 | 0,55 | 1400 | 3300 | 78 | 38 |
| KRFH-D 450 | 230/380 | 50 | 0,75 | 1400 | 5000 | 70 | 49 |
| KRFH-D 500 | 230/380 | 50 | 1,10 | 1400 | 7000 | 83 | 63 |
| KRFH-D 560 | 230/380 | 50 | 2,20 | 1400 | 9800 | 74 | 74 |

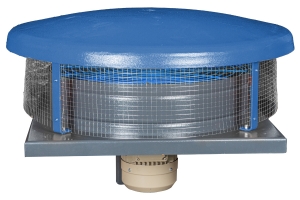

KRFM 315 fans can be used where the air that it exhausts has particles in it that would damage the motor. Capable of carrying air up to max. 120 Celcius degree. Its single-phase motor and easy-to install body allows a simple use.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC MOTOR |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRFM 315A | 230 | 50 | 400 | 2750 | 1960 | 56 | 11,5 |
| KRFM 315B | 230 | 50 | 400 | 1400 | 1650 | 48 | 11,5 |

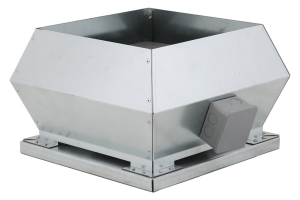

KRF-V-V fans can be used in low to medium volume projects and can be mounted on the roof. Easy-to-install with long-lasting motor and efficient impeller. Vertical discharge allows it to be used in close quarters with other things like chimneys and fans.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ALUMINIUM AND GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRF-V 190 | 230 | 50 | 60 | 2500 | 540 | 65 | 7 |
| KRF-V 225 | 230 | 50 | 135 | 2600 | 1100 | 70 | 21 |
| KRF-V 280 | 230 | 50 | 230 | 2450 | 1800 | 79 | 33 |
| KRF-V 355 | 230 | 50 | 210 | 1400 | 2520 | 63 | 38 |
| KRF-V 400 | 230 | 50 | 430 | 1380 | 4100 | 66 | 50 |
| KRF-V 450 | 230 | 50 | 800 | 1350 | 6000 | 79 | 59 |
| KRF-V 500 | 380 | 50 | 1500 | 1400 | 9500 | 80 | 95 |

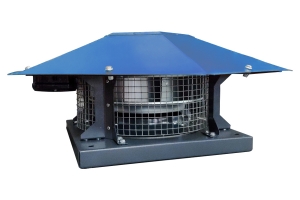

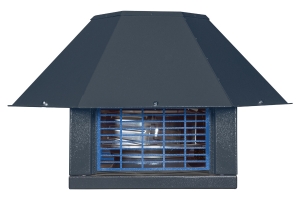

KRF is used for discharge of low quality air on common shafts in all buildings from roof top horizontally between min. 520m3/h max. 9.300 m3/h air flow capacity. It is suitable for ventilation of factory, warehouse, hospital, shopping malls, cafes, restaurants, hotels restrooms etc.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ALUMINIUM-SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -30 - +60 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KRF 250 | 230 | 50 | 130 | 2685 | 1150 | 75 | 8 |
| KRF 280 | 230 | 50 | 180 | 2615 | 2000 | 78 | 10 |
| KRF 355 | 230 | 50 | 210 | 1400 | 2350 | 70 | 18 |
| KRF400 | 230 | 50 | 435 | 1400 | 3400 | 83 | 22 |
| KRF 450 | 230 | 50 | 800 | 1350 | 5000 | 83 | 28 |
| KRF 500 | 230 | 50 | 1450 | 1400 | 7000 | 86 | 45 |
| KRF 560 | 380 | 50 | 2750 | 1350 | 9800 | 86 | 48 |

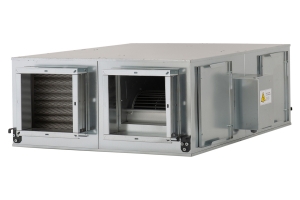

Ceiling Type Heat Recovery Device (Energy Saving Forward Curved Direct Drive Fan + Aluminum Heat Exchanger for Long Life Forward Curved). Low energy consumption and low noise levels. G4 type for prefiltration. Control panel can operate both sides flow rate with adjustable stages, Can control electric heater. 10mm thick material inside unit for heat and noise insulatio
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| EFFICIENCY | %50 - %70 |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL |
| IMPELLER TYPE | FORWARD CURVED |
| IMPELLER MATERIAL | ALUMINUM-GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -10 - +40 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KGK-F 10 | 230 | 50 | 2x150 | 1450 | 45 | 90 |
| KGK-F 15 | 230 | 50 | 2x375 | 2800 | 46 | 116 |
| KGK-F 25 | 230 | 50 | 2x450 | 3500 | 48 | 138 |
| KGK-F 40 | 230 | 50 | 2x550 | 4000 | 52 | 152 |
| KGK-F 50 | 230 | 50 | 2x1270 | 5600 | 60 | 195 |
