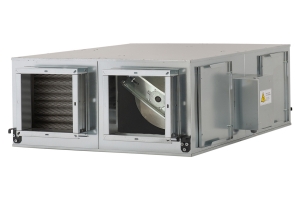

KGK Heat Recovery Unit

KGK Heat Recovery Unit

Description :

Ceiling Type Heat Recovery Device (Energy Saving Plug Fan+Aluminum Heat Exchanger for Long Life) Plug Fan Aluminum or Galvanized Sheet Metal. (Backward Curved). Low energy consumption. G4 type for prefiltration. Control panel can operate both sides flow rate with adjustable stages, Can control electric heater. 10mm thick material inside unit for heat and noise insulation.



MOTOR PROTECTION CLASS
 IP 44
MOTOR INSULATION CLASS  F CLASS
MOTOR ENCLOSURE TYPE AC EXTERNAL ROTOR MOTOR
EFFICIENCY %50 - %70
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING OPTIONAL
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ALUMINUM-GALVANIZED SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -10 - +40 °C
STANDARDS

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KGK 10 230 50 2x230 2670 1800 43 80
KGK 20 230 50 2x210 2400 2500 45 105
KGK 30 230 50 2x400 1470 3000 48 125
KGK 40 230 50 2x510 1400 4000 52 135
KGK 50 230 50 2x800 1380 6000 79 185
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 01:35

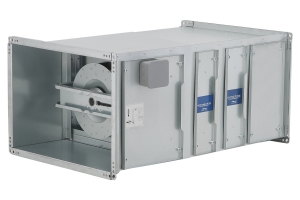

KSVU Shelter Duct Fan

KSVU Shelter Duct Fan

Description :

KSVU Shelter ventilation units has a damper that allows air through different channels. First channel is for peace times which only has a G4 dust filter. The second channel is for war times which has G4 dust filter followed by an active carbon filter and the final filtering stage is NBC filter (Nuclear, biological and chemical fallout filter). KSVU 3E has a crank which allows the unit to be used without electricity and just by manpower.



MOTOR PROTECTION CLASS
 IP 44
MOTOR INSULATION CLASS  F CLASS
MOTOR ENCLOSURE TYPE AC EXTERNAL ROTOR MOTOR
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING OPTIONAL
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ALUMINIUM-SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KSVU 50-35 230 50 230 2700 1500 65 45
KSVU 80-40 230 50 210 1400 3300 70 70
KSVU 90-45 230 50 430 1380 4000 85 95
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 01:30

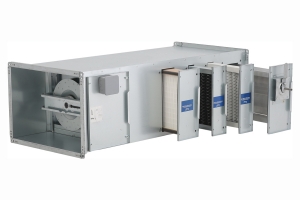

KFU Duct Fan With Filter

KFU Duct Fan With Filter

Description :

KFU is produced with G4 dust filter and Active Carbon filter as standard in the range of 1.500 m3 / h - 4.000 m3 / h air flow capacity. Optional fan filters can be changed. In this way, it can be shaped according to the required application. Factory, hospital, office, laboratory, super markets, shopping malls, cafes, restaurants, etc. It is suitable for use in all buildings where has duct system.



MOTOR PROTECTION CLASS
 IP 44
MOTOR INSULATION CLASS  F CLASS
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE AC EXTERNAL ROTOR MOTOR
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING OPTIONAL
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ALUMINIUM-SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KFU 50-35 230 50 230 2700 1500 65 45
KFU 80-40 230 50 210 1400 3300 70 70
KFU 90-45 230 50 430 1380 4000 85 95
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 01:12

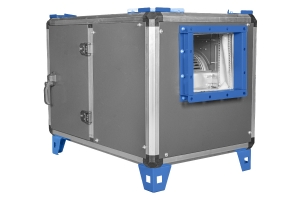

KAL-B Belt Drive Cabinet Fan

KAL-B Belt Drive Cabinet Fan

Description :

 KAL-B Ventilation Unit can be used in the range of 500 m³/h to 100.000 m³/h air flow capacity, G4, G2, F7 etc. applicable as filter and production is made in different types and sizes if desired.

  •  Housing structure is aluminum carcass and the corners are produced as plastic and aluminum components.
  •  Panel thicknesses are produced as standard 25mm or optional 50mm rockwool insulated double skin, Electrostatic Powder Painted and Leak-proof Gasket.
  •  Double Inlet Radial Fans with Belt Driven Assemblies are Used inside.
  •  Easy installation is possible with the compact design.
  •  It is used for supply, exhaust or pressurization for the ventilation.


Factory, Hospital, Office, Laboratory, Shopping Center (shopping malls), Cafe, Restaurants, Parking lots etc. It is suitable for use in all structures which has air duct system.



MOTOR PROTECTION CLASS
 IP 55
MOTOR INSULATION CLASS  F CLASS
MOTOR EFFICIENCY CLASS IE2-IE3
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING OPTIONAL POWDER COATING
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL GALVANIZED SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KAL-B 280A  230/380 50 1,1 2800 3000 65 44
KAL-B 280B  230/380 50 2,2 2800 5500 68 45
KAL-B 315A  230/380 50 2,2 2800 7000 70 63
KAL-B 315B  230/380 50 2 2800 8000 71 64
KAL-B 355A   230/380 50 3 2800 9500 71 84
KAL-B 355B  380 50 4 2800 10000 73 87
KAL-B 400A 380 50 4 1400 13000 73 105
KAL-B 400B 380 50 5,5 1400 15000 75 109
KAL-B 450A 380 50 5,5 1400 16000 75 134
KAL-B 450B 380 50 7,5 1400 18500 77 139
KAL-B 500A 380 50 7,5 1400 20000 77 168
KAL-B 500B 380 50 11 1400 22500 75 178
KAL-B 560A 380 50 11 1400 25000 75 282
KAL-B 560B 380 50 15 1400 30000 74 290
KAL-B 630A 380 50 15 1400 32500 74 325
KAL-B 630B 380 50 18,5 1400 37000 76 345
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 00:49

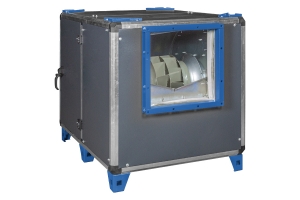

KAL-F Belt Drive Cabinet Fan

KAL-F Belt Drive Cabinet Fan

Description :


KAL-F Ventilation Unit can be used in the range of 500 m³/h to 100.000 m³/h air flow capacity, G4, G2, F7 etc. applicable as filter and production is made in different types and sizes if desired.

  • Housing structure is aluminum carcass and the corners are produced as plastic and aluminum components.
  • Panel thicknesses are produced as standard 25mm or optional 50mm rockwool insulated double skin, Electrostatic Powder Painted and Leak-proof Gasket.
  • Double Inlet Radial Fans with Belt Driven Assemblies are Used inside.
  • Easy installation is possible with the compact design.
  • It is used for supply, exhaust or pressurization for the ventilation.


Factory, Hospital, Office, Laboratory, Shopping Center (shopping malls), Cafe, Restaurants, Parking lots etc. It is suitable for use in all structures which has air duct system.



MOTOR PROTECTION CLASS
 IP 55
MOTOR INSULATION CLASS  F CLASS
MOTOR EFFICIENCY CLASS IE2-IE3
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING OPTIONAL POWDER COATING
IMPELLER TYPE FORWARD CURVED
IMPELLER MATERIAL GALVANIZED SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KAL-F 7/7A 230/380 50 0,75 1400 2250 65 69
KAL-F 7/7B 230/380 50 1,1 1400 2275 65 72
KAL-F 9/9A 230/380 50 1,1 1400 4250 69 80
KAL-F 9/9B 230/380 50 1,5 1400 5000 69 82
KAL-F  10/10A 230/380 50 1,5 1400 6000 70 89
KAL-F 10/10B 230/380 50 2,2 1400 6800 70 94
KAL-F 12/12A 230/380 50 2,2 1400 8200 71 120
KAL-F 12/12B 230/380 50 3 1400 9800 71 123
KAL-F 15/15A 230/380 50 3 1400 11500 70 138
KAL-F 15/15B 380 50 4 1400 12500 70 144
KAL-F 18/18A 380 50 5,5 1400 16000 65 186
KAL-F 18/18B 380 50 7,5 1400 20000 65 193
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 00:41

KAL-ECO Belt Drive Cabinet Fan

Description :


KEF-HF fans can be connected to kitchen hoods to exhaust the air from cookers, grilles, fryers etc. It will exhaust the greasy air and keeps the kitchen area clean and odorless. Inspection hatch allows cleaning the fan and maintenance. Motor is located out of the airstream and is not effected by matters in the air.



MOTOR PROTECTION CLASS
 IP 55
MOTOR INSULATION CLASS  F CLASS
MOTOR EFFICIENCY CLASS IE2-IE3
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING ELECTROSTATIC POWDER PAINT
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ST37 SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (kW)REV (RPM)FLOW RATE (m3/h)WEIGHT (KG)
KAL-ECO 7/7A 230/380 50 0,75 1400 2250 69
KAL-ECO 7/7B 230/380 50 1,1 1400 2750 72
KAL-ECO 9/9A 230/380 50 1,1 1400 4250 80
KAL-ECO 9/9B 230/380 50 1,5 1400 5000 82
KAL-ECO 10/10A 230/380 50 1,5 1400 6000 89
KAL-ECO 10/10B 230/380 50 2,2 1400 6800 94
KAL-ECO 12/12A 230/380 50 2,2 1400 8200 120
KAL-ECO 12/12B 230/380 50 3 1400 9800 120
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 00:28

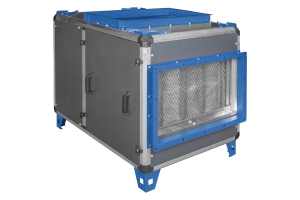

KEF-HF Cabinet Kitchen Filtered Exhaust Fan

KEF-HF Cabinet Kitchen Filtered Exhaust Fan

Description :


KEF-HF fans can be connected to kitchen hoods to exhaust the air from cookers, grilles, fryers etc. It will exhaust the greasy air and keeps the kitchen area clean and odorless. Inspection hatch allows cleaning the fan and maintenance. Motor is located out of the airstream and is not effected by matters in the air.



MOTOR PROTECTION CLASS
 IP 55
MOTOR INSULATION CLASS  F CLASS
MOTOR EFFICIENCY CLASS IE2-IE3
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING ELECTROSTATIC POWDER PAINT
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ST37 SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KEF-HF 315 230/380 50 0,25 1400 1650 51 35
KEF-HF 355A 230/380 50 0,37 1400 2200 63 63
KEF-HF355B 230/380 50 0,55 1400 2400 73 65
KEF-HF 400 230/380 50 0,75 1400 3500 74 57
KEF-HF 450A 230/380 50 1,10 1400 5500 75 69
KEF-HF 450B 230/380 50 1,50 1400 6000 76 70
KEF-HF 500 230/380 50 2,20 1400 8000 79 107
KEF-HF 560A 230/380 50 3 1400 10000 80 140
KEF-HF 560B 380 50 4 1400 12000 81 145
KEF-HF 630 380 50 5,50 1400 18000 84 193
KEF-HF 710A 380 50 7,50 1400 20000 85 215
KEF-HF 710B 380 50 11 1400 25000 86 218
KEF-HF 800A 380 50 15 1400 30800 88 250
KEF-HF 800B 380 50 18,50 1400 35000 90 270
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 00:17

KEF-M Kitchen Exhaust Fan

KEF-M Kitchen Exhaust Fan

Description :


KEF-M fans can be connected to kitchen hoods to exhaust the air from cookers, grilles, fryers etc. It will exhaust the greasy air and keeps the kitchen area clean and odorless. Inspection hatch allows cleaning the fan and maintenance. Motor is located out of the airstream and is not effected by matters in the air.



MOTOR PROTECTION CLASS
 IP 55
MOTOR INSULATION CLASS  F CLASS
MOTOR EFFICIENCY CLASS IE2-IE3
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING OPTIONAL
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ALUMINIUM SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KEF-M 315 380 50 0,25 1469 1600 53 32
KEF-M 355 380 50 0,37 1471 2300 55 34
KEF-M 400 380 50 0,55 1478 3300 58 38
KEF-M 450 380 50 0,75 1454 5000 50 49
KEF-M 500 380 50 1.1 1462 7000 63 62
Published in Duct Fans
Tagged under
Read more...
Tuesday, 03 October 2023 00:06

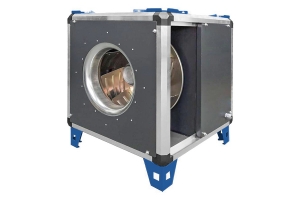

KEF-H Cabinet Kitchen Exhaust Fan

KEF-H Cabinet Kitchen Exhaust Fan

Description :


KEF-H fans can be connected to kitchen hoods to exhaust the air from cookers, grilles, fryers etc. It will exhaust the greasy air and keeps the kitchen area clean and odorless. Inspection hatch allows cleaning the fan and maintenance. Motor is located out of the airstream and is not effected by matters in the air.



MOTOR PROTECTION CLASS
 IP 55
MOTOR INSULATION CLASS  F CLASS
MOTOR EFFICIENCY CLASS IE2-IE3
MOTOR BRAND OMEGA-GAMAK-VOLT-WAT
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING ELECTROSTATIC POWDER PAINT
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ST37 SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KEF-H 400 230/380 50 0,75 1400 3500 74 45
KEF-H 450 230/380 50 1,1 1400 5500 75 59
KEF-H 500 230/380 50 2,2 1400 8000 79 80
KEF-H 560A 230/380 50 3 1400 10000 80 140
KEF-H 560B 380 50 4 1400 12000 81 145
Published in Duct Fans
Tagged under
Read more...
Monday, 02 October 2023 06:31

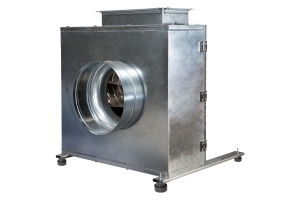

KBF Cabinet Duct Fan

KBF Cabinet Duct Fan

Description :


KBF is used for supply or extract fresh air from ventilation ducts between min. 2.600m3/h max. 12.000m3/h air flow capacity. Factory, hospital, office, laboratory, super markets, shopping malls, cafes, restaurants, etc. It is suitable for use in all buildings where has duct system.



MOTOR PROTECTION CLASS
 IP 44
MOTOR INSULATION CLASS  F CLASS
MOTOR ENCLOSURE TYPE TEFC
BODY MATERIAL GALVANIZED SHEET METAL
BODY COATING ELECTROSTATIC POWDER PAINT
IMPELLER TYPE BACKWARD CURVED
IMPELLER MATERIAL ALUMINIUM - GALVANIZED SHEET METAL
DUTY CYCLE IEC Duty Cycle-S1
WORKING AMBIENT TEMP -20 - +50 °C
DIRECTIVE

IEC-60335-2-80, ISO 1940-1



 TECHNICAL SPECIFICATIONS



MODELVOLTAGE (V)FREQUENCY (Hz)POWER (W)REV (RPM)FLOW RATE (m3/h)SOUND PRESSURE dB(A) 3mWEIGHT (KG)
KBF 350 220 50 210 1400 2600 60 30
KBF 400 220 50 430 1380 4100 66 36
KBF 450 220 50 800 1350 6000 79 40
KBF 500 380 50 1500 1400 9500 80 51
KBF 560 380 50 2500 1340 12000 85 65
Published in Duct Fans
Tagged under
Read more...
Page 6 of 7
